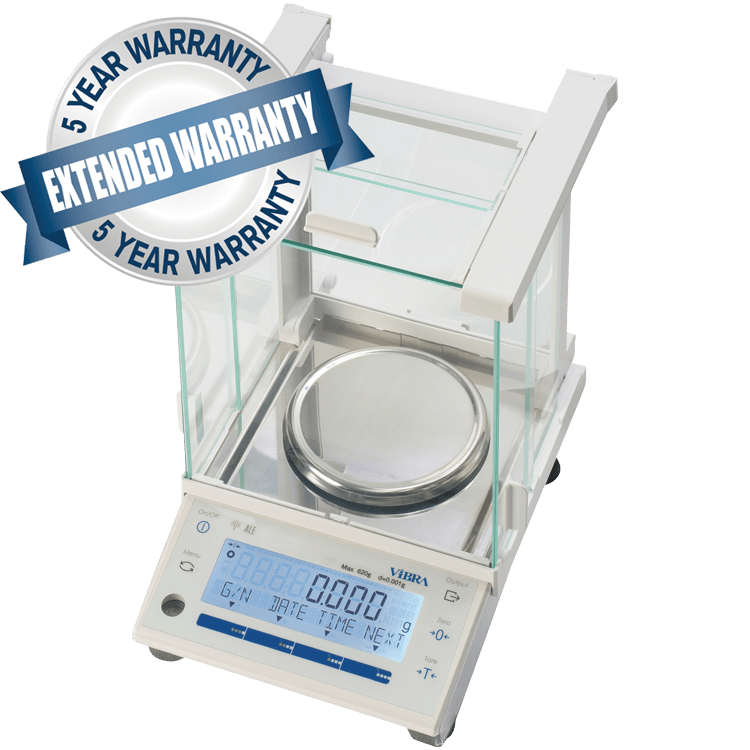

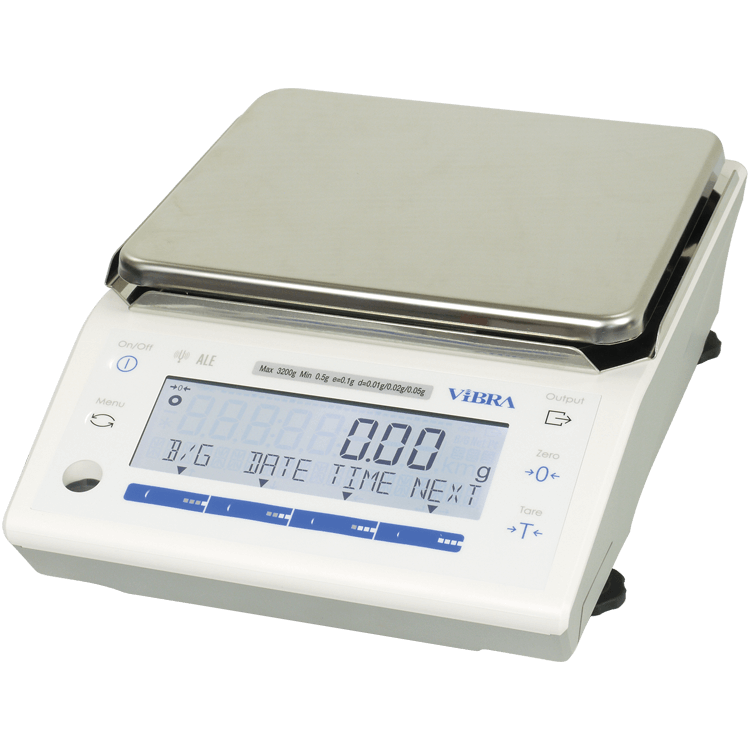

Precision Balance

SDALE Series

Tuning fork precision balance scales with windshield deliver precision weighing & repeatability.

Precision Balance

Optimise your laboratory weighing using the SDALE series tuning fork precision balance. Featuring user-friendly operation, fast stabilisation time, a range of weighing functions and tuning fork weighing mechanism.

This unique weighing mechanism offers a range of advantages over electromagnetic weighing mechanisms, including increased reliability, low power consumption and short warm up time.

tuning fork sensor
extended 5 year warranty
large backlit LCD display
user friendly operation
built-in self-calibration system
RS232 interface for data output to PC
animal weighing mode
counting mode
multiplied by coefficient mode
specific gravity mode
statistic mode
formulation mode
comparator mode ( Hi / Lo / OK )
addition function
glass windshield with 0.001 g model
AC/DC adaptor and AA battery operation * ( batteries not included )

Backlight

Yes

Balance Capacity

1500 g

Below Balance Weighing

Yes

Calibration Type

External

Checkweighing Function

Yes

Communication Protocol

RS232, USB, Optional Ethernet, Optional Relay Contact

Comparator Function

Yes

Counting Function

Yes

Density Determination

Yes

Display Details

LCD display with backlight

Draight Shield

Environment Suitability

Dry

Ingress Protection Rating

Not Rated

NMI Approved for Trade Use Explained

NMI approved for trade use

Operating Temperature

5 ºC to 35 ºC

Pan Size (mm)

180 (W) x 160 (D)

Percentage Function

Yes

Power Details

4 x AA Batteries (not included), Mains Power

Printer Output

RS232, USB

Readability

0.01 g

Repeatability

0.01 g

Stabilization Time (sec)

1.6

Statistics Function

Yes

Tare Range

Full

Overall Dimensions (mm)

192 (W) x 260 (D) x 85 (H)

Weighing Units

mg, g, lb, ct, oz, ozt, dwt, mom

Variations

SDALE323

Balance Capacity

320 g

Pan Size (mm)

118 mm Diameter

Readability

0.001 g

Enquire for pricing

SDALE1502

Balance Capacity

1500 g

Pan Size (mm)

180 (W) x 160 (D)

Readability

0.01 g

Enquire for pricing

SDALE6202

Balance Capacity

6200 g

Pan Size (mm)

180 (W) x 160 (D)

Readability

0.01 g

Enquire for pricing

SDALE623R

Balance Capacity

623 g

Pan Size (mm)

118 mm Diameter

Readability

0.001 g

Enquire for pricing

SDALE3202R

Balance Capacity

3200 g

Pan Size (mm)

180 (W) x 160 (D)

Readability

0.01 g

Enquire for pricing

SDALE6202R

Balance Capacity

6200 g

Pan Size (mm)

180 (W) x 160 (D)

Readability

0.01 g

Enquire for pricing

SDALE15001R

Balance Capacity

15000 g

Pan Size (mm)

180 (W) x 160 (D)

Readability

0.1 g

Enquire for pricing
